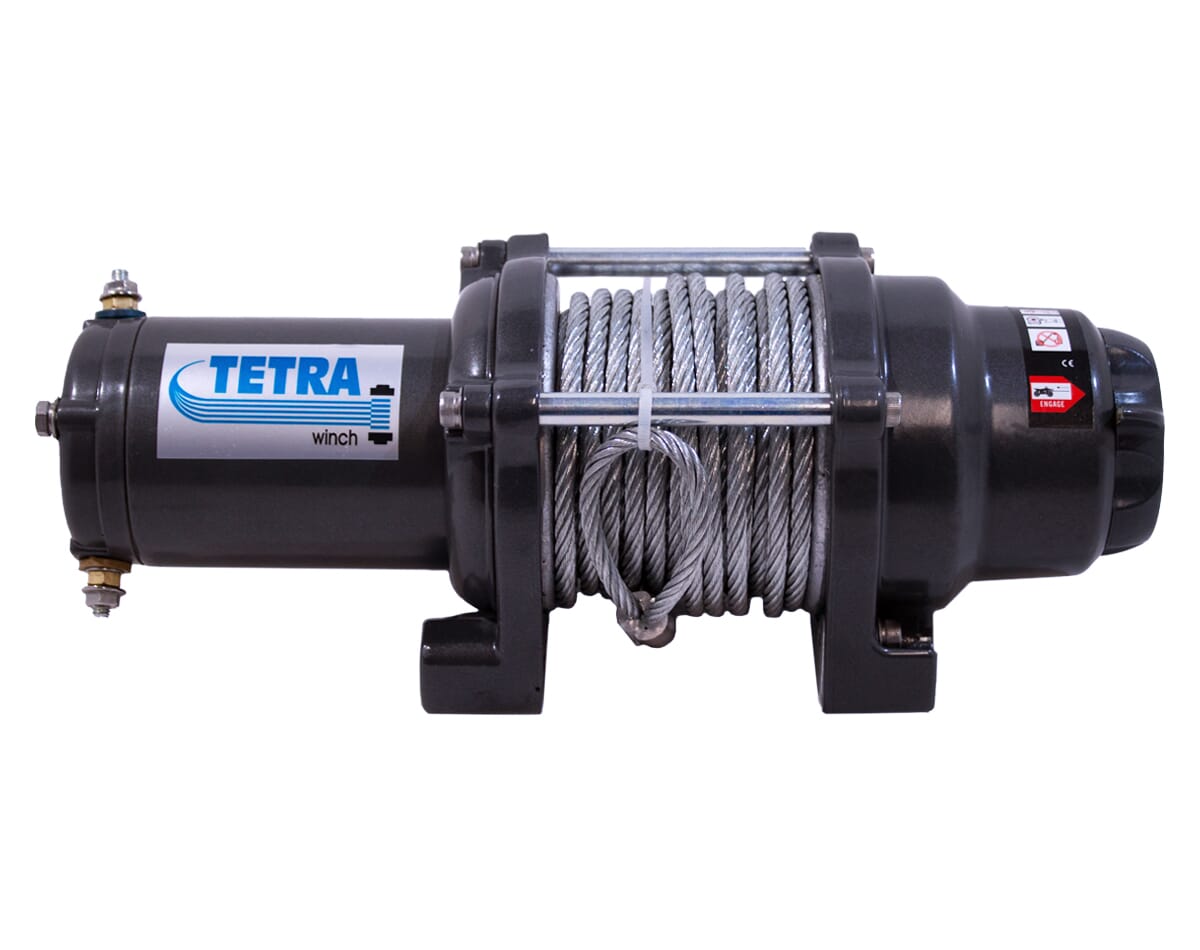

Vinsj Tetra 4000 RTA

Vinsj Tetra 4000 RTA
Varenr.
1083
Pris
kr 3 200,00
Vis UTSOLGT tekst:Nei

Kvantumsrabatt

Loading...
  • Vinsj Tetra 4000 RTA
  • Tetra 4000 2
Her har vi tatt vår bestseller siden 2007 Tetra 2500, forsterket den og satt på 60 % større motor.  Det betyr at ingen ATV er for stor for denne.

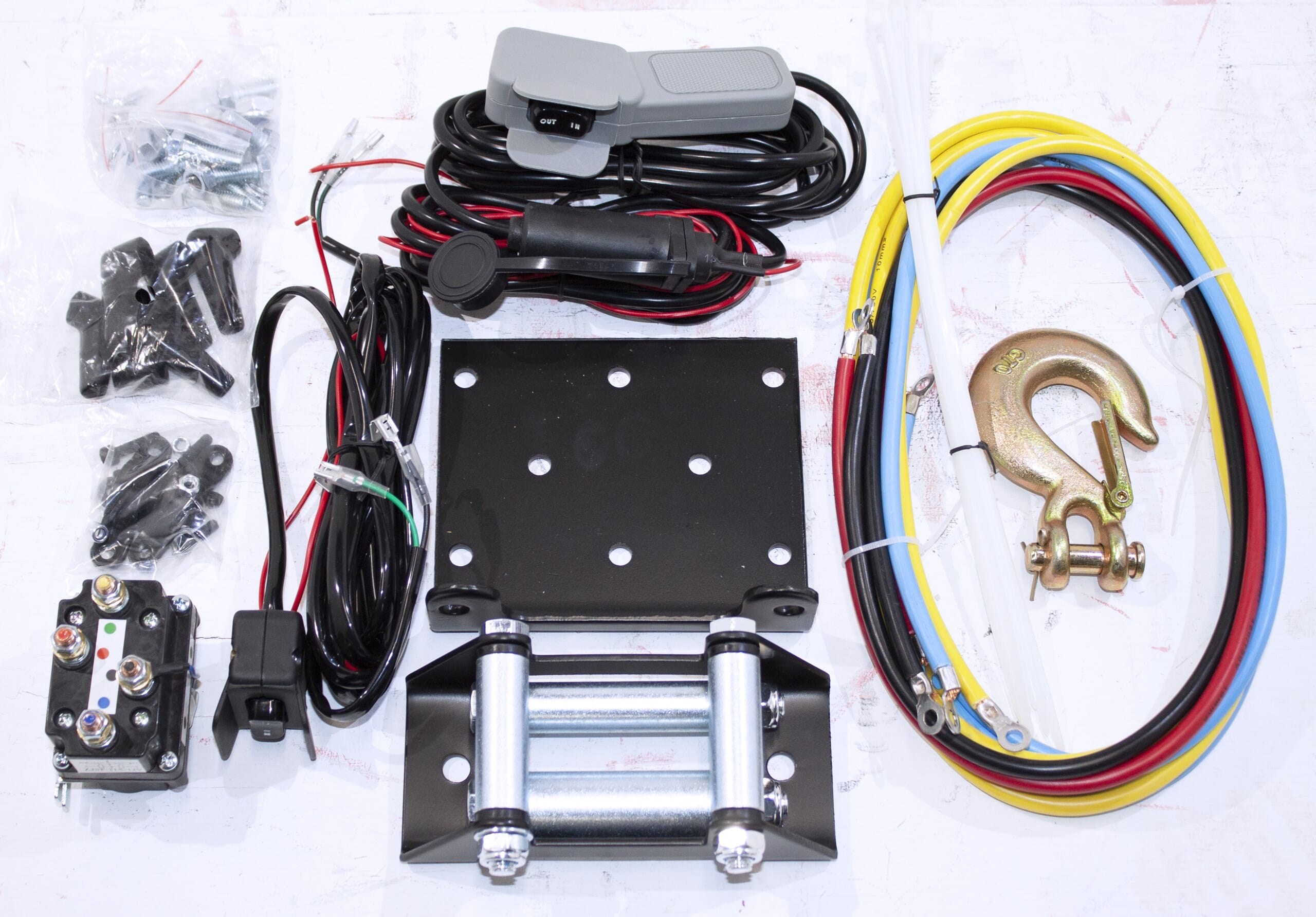

Kjøres inn og ut med medfølgende styrebryter (3 meter kabel) eller bryteren som følger med for å montere på ATV styre.
Vinsjen har full brems , slik at når man slipper styrebryter så kan ikke wire gå ut. Den har og frikobling  slik at wire kan trekkes raskt ut for hånd.
Leveres standard med 12 meter 6 mm galvanisert stålwire. Syntetisk wire er et bra alternativ, se under tilbehør.
Se også radiostyring under tilbehør.
Vinsjen passer og  godt til å dra båter inntil 1500 kg opp på tilhenger.

Specifications:
All Metal Drivetrain.
Sealed Drivetrain & Motor.Eleven sealed areas protect the winch from water and contaminant infiltration.
1) Rated Line Pull: 4,000lbs. (1,814kgs) single-line
2) Motor: 12V DC, 1.6hp (1.2kw) permanent magnet, sealed
3) Control: Mini-rock Switch and Remote Control, 10ft.(3.0m) lead
4) Geartrain: all-metal strengthens 3-stage planetary, sealed
5) Gear Ratio: 136:1
6) Clutch(freespooling): cam activated
7) Brake: automatic mechanical brake
8)Drum Diameter/Length: 2.0"/2.9" (51mm/75mm), Strengthens
9) Wire Rope: 40`,6.3mm diameter (12.25m,6.3mm diam)
10) Fairlead: roller 4-way
11) Recommended Battery: 500 CCA minimum for winch
12) Battery Leads: color coded wiring
13) Duty Cycle: intermittent
14) Mounting Bolt Pattern: 76 X 124mm
15) Finish:  grey

Performance Data:
Line Pull                  Line Speed                  Motor Current
Lbs(Kgs.)              Ft./min(M/min.)                    Amps
0                                   26(7.9)                            31
500(227)                      20(6.1)                            70
1000(455)                   16(4.9)                            106
1500(680)                   14(4.3)                            141
2000(907)                   11(3.4)                            175
2500(1134)                   8(2.4)                            224
3000(1361)                   7(2.1)                            245
3500(1587)                   6(1.8)                            268
4000(1814)                   4(1.2)                            308
Above performance specs are based on first layer of drum

Pulling power              Wire rope layer
Lbs/(Kgs.)              1st is closest to drum
4000(1814)                          1st
3520(1597)                         2nd
3098(1405)                          3rd
2726(1236)                          4th
